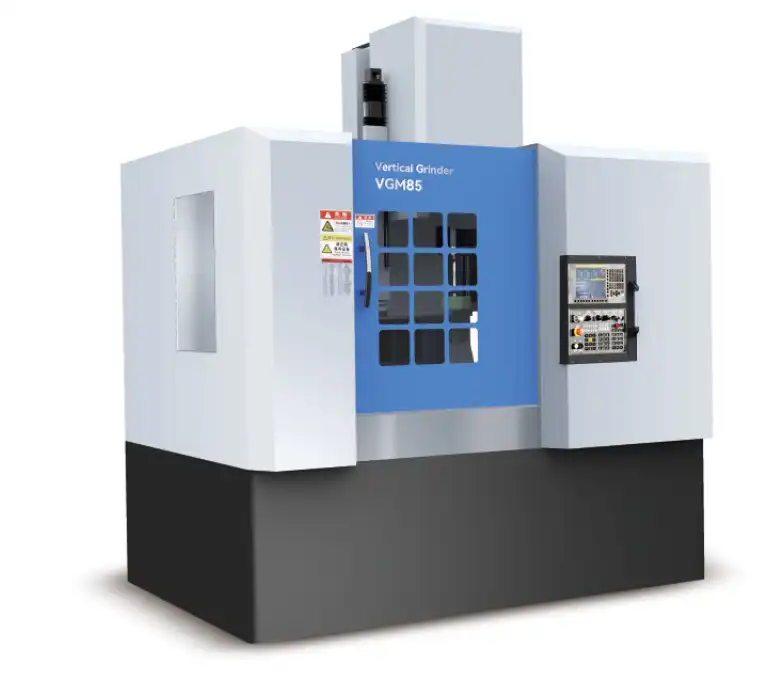

VGM 85 Vertical Grinder

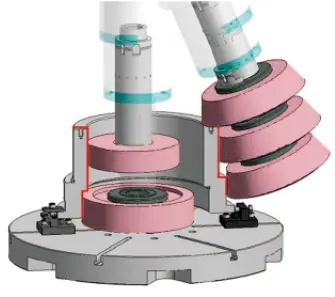

Inner circle, outer circle and end face grinding can be carried out in one clamping.
The workpiece table adopts a static pressure turntable with high rigidity and high load capacity.
The grinding wheel spindle adopts HSK-A100 high-power and high-rigidity special electric spindle for vertical grinding mills.
• Vertical Grinder VGM 85
|
Model |
Unit |
UNI-VGM 85 |
|
Range of grinding inner diameter |
mm |
Φ50~800 |
|
Range of grinding outer diameter |
mm |
Φ800 |
|
Grinding wheel size |
mm |
Φ45~305 |
|
Maximum weight of work |
kg |
1000 |
|
Mechanical dimensions(L*W*H) |
mm |
3200*2800*3500 |
|
Mechanical weight |
kg |
13,000 |
|
|
Inner circle, outer circle and end face grinding can be carried out in one clamping. The workpiece table adopts a static pressure turntable with high rigidity and high load capacity. The grinding wheel spindle adopts HSK-A100 high-power and high-rigidity special electric spindle for vertical grinding mills. |
|
Precision |
|
|
Roundness, |
1.5 μm |
|
Concentricity |
2.5 μm |
|
Surface roughness |
0.2 μm |

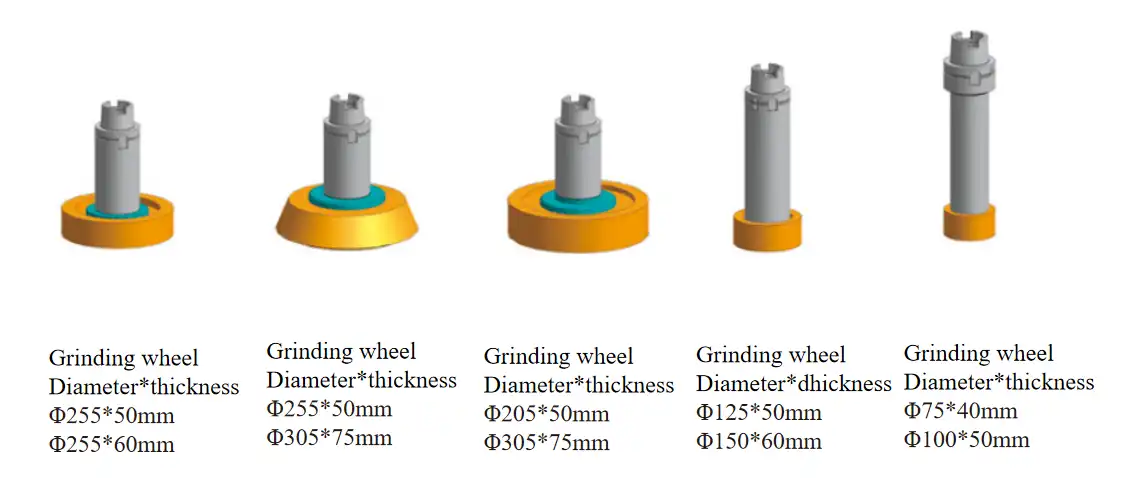

Grinding wheel library
