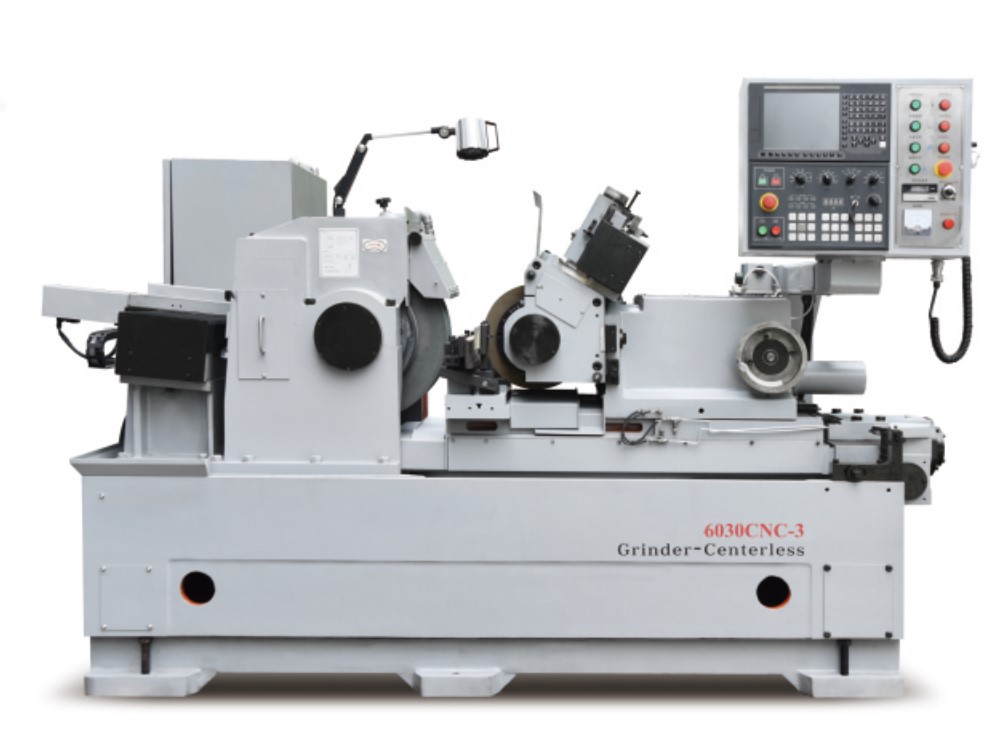

UNI-6030 CNC-3 High precision bearing type CNC type Centerless Grinder
This series of centerless grinders are suitable for heavy cutting, oversized workpieces, and breakage
Grinding design for special workpieces such as continuous and non-complete circles
The grinding wheel guide wheel bearing spindle adopts FAG double row roller bearings and angular contact bearing combinations
Rectangular hard rail ensures stability during grinding and ensures the stability of the workbench positioning accuracy
Various combinations of X (1-6) axes enable processing of complex-shaped workpieces, reducing difficulty in manual operation
● HC-5020/30CNC-X
● HC-6020/30/40CNC-X
1. This series of centerless grinders are suitable for heavy cutting, oversized workpieces, and breakage.
Grinding design for special workpieces such as continuous and non-complete circles.
2. The grinding wheel guide wheel bearing spindle adopts FAG double row roller bearings and
Angular contact bearing combinations.
3. Rectangular hard rail ensures stability during grinding and ensures the stability of the workbench
positioning accuracy.
4. Various combinations of X (1-6) axes enable processing of complex-shaped workpieces, reducing difficulty in manual operation.
|
Mode |
Unit |
UNI-5020/30CNC-X |
UNI-6020/30/40CNC-X |
|
Grinding diameter range |
mm |
Φ1～Φ120 |
Φ1～120 |
|
Grinding wheel size (outer *width*inner ) |
mm |
Φ510*205/305*Φ254 |
Φ610*205/305/405*Φ304.8 |
|
Mechanical dimensions(L*W*H) |
MM |
2700*2350*1650 |
2700*2350*1650 |
|
Mechanical weight |
kg |
6000 |
6500 |
